285: ‘Egyptian cat’

import urllib.request
import zipfile
import numpy as np
import os
from IPython.display import Image
import tensorflow as tf
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Flatten, Dropout, Dense
from tensorflow.keras.models import Sequential
from tensorflow.keras.preprocessing.image import ImageDataGenerator
import cv2

%%javascript
IPython.OutputArea.auto_scroll_threshold = 50;

_URL = 'https://storage.googleapis.com/mledu-datasets/cats_and_dogs_filtered.zip'
path_to_zip = tf.keras.utils.get_file('cats_and_dogs.zip', origin=_URL, extract=True)
PATH = os.path.join(os.path.dirname(path_to_zip), 'cats_and_dogs_filtered')

Downloading data from https://storage.googleapis.com/mledu-datasets/cats_and_dogs_filtered.zip
68608000/68606236 [==============================] - 0s 0us/step

train_path = os.path.join(PATH, 'train')
validation_path = os.path.join(PATH, 'validation')

original_datagen = ImageDataGenerator(rescale=1./255)

training_datagen = ImageDataGenerator(
    rescale=1. / 255,
    rotation_range=30,
    width_shift_range=0.1,
    height_shift_range=0.1,
    shear_range=0.1,
    zoom_range=0.1,
    horizontal_flip=True,
    fill_mode='nearest')

original_generator = original_datagen.flow_from_directory(train_path,
                                                          batch_size=128,
                                                          target_size=(150, 150),
                                                          class_mode='binary'
                                                         )

Found 2000 images belonging to 2 classes.

training_generator = training_datagen.flow_from_directory(train_path,
                                                          batch_size=128,
                                                          shuffle=True,
                                                          target_size=(150, 150),
                                                          class_mode='binary'
                                                         )

Found 2000 images belonging to 2 classes.

validation_generator = training_datagen.flow_from_directory(validation_path,
                                                            batch_size=128,
                                                            shuffle=True,
                                                            target_size=(150, 150),
                                                            class_mode='binary'
                                                           )

Found 1000 images belonging to 2 classes.

import matplotlib.pyplot as plt

%matplotlib inline

vgg_model=tf.keras.applications.VGG16(input_shape=(224,224,3),include_top=True)

Downloading data from https://storage.googleapis.com/tensorflow/keras-applications/vgg16/vgg16_weights_tf_dim_ordering_tf_kernels.h5
553467904/553467096 [==============================] - 7s 0us/step

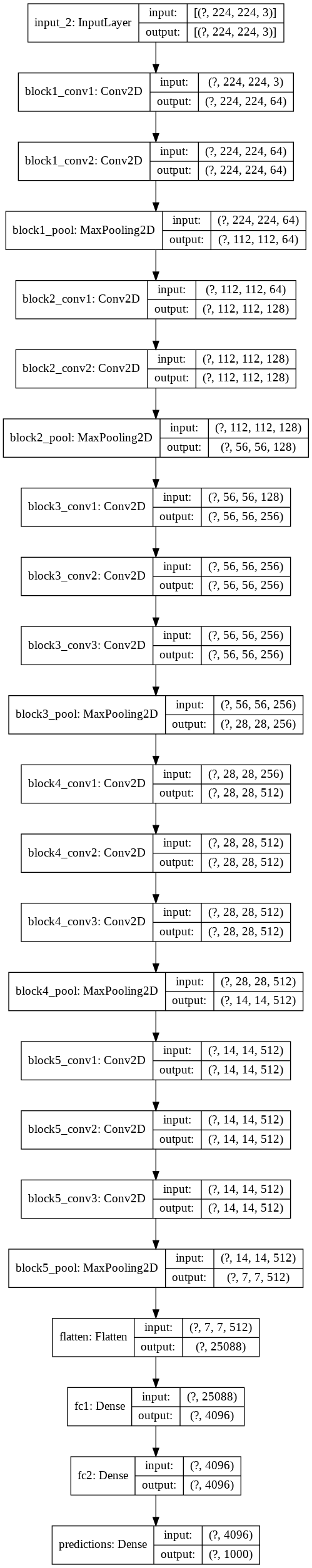

tf.keras.utils.plot_model(vgg_model,show_shapes=True)

grad_cam_model = tf.keras.models.Model([vgg_model.input], [vgg_model.get_layer('block5_conv3').output,vgg_model.output])

img = cv2.imread('aa.jpg')
img = cv2.resize(img, (224, 224))
img=cv2.cvtColor(img,cv2.COLOR_BGR2RGB)

# 173: 'Ibizan hound, Ibizan Podenco'
temp = np.array(predictions[0]).argsort()
temp[-2:]

array([173, 285])

with tf.GradientTape() as tape:
    conv_outputs, predictions = grad_cam_model(np.reshape(img,(1,224,224,3)))
    loss = predictions[:, 285]

output = conv_outputs[0]
grads = tape.gradient(loss, conv_outputs)[0]

guided_grads = tf.cast(output > 0, 'float32') * tf.cast(grads > 0, 'float32') * grads

weights = tf.reduce_mean(guided_grads, axis=(0, 1))

cam = np.ones(output.shape[0: 2], dtype = np.float32)
for i, w in enumerate(weights):
    cam += w * output[:, :, i]

plt.imshow(cam)

cam = cv2.resize(cam.numpy(), (224, 224))

grad_cam = np.maximum(grad_cam, 0)

grad_cam = grad_cam / grad_cam.max()

heatmap = (cam - cam.min()) / (cam.max() - cam.min())

plt.imshow(heatmap)

cam = cv2.applyColorMap(np.uint8(255*heatmap),cv2.COLOR_BGR2RGB)

plt.imshow(cv2.add(cam,img))

with tf.GradientTape() as tape:
    conv_outputs, predictions = grad_cam_model(np.reshape(img,(1,224,224,3)))
    loss = predictions[:, 173]
output = conv_outputs[0]
grads = tape.gradient(loss, conv_outputs)[0]
guided_grads = tf.cast(output > 0, 'float32') * tf.cast(grads > 0, 'float32') * grads
weights = tf.reduce_mean(guided_grads, axis=(0, 1))
cam = np.ones(output.shape[0: 2], dtype = np.float32)
for i, w in enumerate(weights):
    cam += w * output[:, :, i]
cam = cv2.resize(cam.numpy(), (224, 224))
grad_cam = np.maximum(grad_cam, 0)
grad_cam = grad_cam / grad_cam.max()
heatmap = (cam - cam.min()) / (cam.max() - cam.min())

plt.imshow(heatmap)

cam = cv2.applyColorMap(np.uint8(255*heatmap),cv2.COLOR_BGR2RGB)
plt.imshow(cv2.add(cam,img))
