import

import tensorflow_datasets as tfds
import tensorflow as tf
from tensorflow.keras.layers import Dense, Conv2D, MaxPooling2D, Flatten, Dropout
from tensorflow.keras.models import Sequential
from tensorflow.keras.callbacks import ModelCheckpoint
from tensorflow.keras.applications import VGG16

from IPython.display import Image
import numpy as np
import matplotlib.pyplot as plt

%matplotlib inline

Hyperparameter 정의

BATCH_SIZE와 EPOCHS를 정의합니다.

BATCH_SIZE = 64
EPOCHS = 20
dataset_name = 'cats_vs_dogs'
(train_dataset, validation_dataset), info = tfds.load(name=dataset_name, split=('train[:80%]', 'train[-20%:]'), with_info=True)
len(list(train_dataset)), len(list(validation_dataset))
(18610, 4652)

이미지에 대한 Normalize를 진행합니다.

def normalize(images):
    # 0~1 사이의 값으로 Normalize 합니다.
    img, lbl = tf.cast(images['image'], tf.float32) / 255.0, images['label']
    # 300 X 300 사이즈로 resize 합니다.
    img = tf.image.resize(img, size=(300, 300))
    return img, lbl

normalize를 수행합니다.

Training Set와 Validation Set을 만들고 BATCH_SIZE에 따라 mini batch를 만듭니다.

train_data = train_dataset.map(normalize).batch(BATCH_SIZE).repeat().prefetch(1)
valid_data = validation_dataset.map(normalize).batch(BATCH_SIZE).repeat().prefetch(1)

steps_per_epoch과 validation_steps를 정의하여 train 합니다.

steps_per_epoch= int(len(list(train_dataset)) * 0.8) // BATCH_SIZE + 1
validation_steps= int(len(list(validation_dataset)) * 0.2) // BATCH_SIZE + 1

Convolution Neural Network

model_cnn = Sequential([
    Conv2D(32, (3, 3), activation='relu', input_shape=(300, 300, 3)),
    MaxPooling2D(2, 2),
    Conv2D(32, (3, 3), activation='relu'),
    MaxPooling2D(2, 2),
    Conv2D(64, (3, 3), activation='relu'),
    MaxPooling2D(2, 2),
    Conv2D(64, (3, 3), activation='relu'),
    MaxPooling2D(2, 2),
    Conv2D(128, (3, 3), activation='relu'),
    MaxPooling2D(2, 2),
    Flatten(),
    Dense(512, activation='relu'),
    Dense(32, activation='relu'),
    Dense(1, 'sigmoid')
])
model_cnn.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
cnn_history = model_cnn.fit(train_data,
                            validation_data=(valid_data),
                            steps_per_epoch=steps_per_epoch,
                            validation_steps=validation_steps,
                            epochs=20,
                           )
Train for 233 steps, validate for 15 steps
Epoch 1/20
233/233 [==============================] - 17s 72ms/step - loss: 0.6577 - accuracy: 0.5878 - val_loss: 0.6195 - val_accuracy: 0.6552
Epoch 2/20
233/233 [==============================] - 13s 56ms/step - loss: 0.5613 - accuracy: 0.7031 - val_loss: 0.5112 - val_accuracy: 0.7594
Epoch 3/20
233/233 [==============================] - 11s 45ms/step - loss: 0.4517 - accuracy: 0.7891 - val_loss: 0.4102 - val_accuracy: 0.8229
Epoch 4/20
233/233 [==============================] - 10s 45ms/step - loss: 0.3710 - accuracy: 0.8328 - val_loss: 0.4086 - val_accuracy: 0.8156
Epoch 5/20
233/233 [==============================] - 11s 45ms/step - loss: 0.3044 - accuracy: 0.8677 - val_loss: 0.4010 - val_accuracy: 0.8208
Epoch 6/20
233/233 [==============================] - 11s 45ms/step - loss: 0.2623 - accuracy: 0.8877 - val_loss: 0.3326 - val_accuracy: 0.8687
Epoch 7/20
233/233 [==============================] - 11s 45ms/step - loss: 0.2223 - accuracy: 0.9096 - val_loss: 0.3062 - val_accuracy: 0.8781
Epoch 8/20
233/233 [==============================] - 11s 46ms/step - loss: 0.1897 - accuracy: 0.9210 - val_loss: 0.3575 - val_accuracy: 0.8354
Epoch 9/20
233/233 [==============================] - 11s 45ms/step - loss: 0.1657 - accuracy: 0.9321 - val_loss: 0.4035 - val_accuracy: 0.8573
Epoch 10/20
233/233 [==============================] - 11s 46ms/step - loss: 0.1429 - accuracy: 0.9433 - val_loss: 0.3405 - val_accuracy: 0.8896
Epoch 11/20
233/233 [==============================] - 11s 45ms/step - loss: 0.1223 - accuracy: 0.9510 - val_loss: 0.4452 - val_accuracy: 0.8302
Epoch 12/20
233/233 [==============================] - 11s 46ms/step - loss: 0.1045 - accuracy: 0.9589 - val_loss: 0.5309 - val_accuracy: 0.8677
Epoch 13/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0938 - accuracy: 0.9638 - val_loss: 0.3764 - val_accuracy: 0.8792
Epoch 14/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0664 - accuracy: 0.9756 - val_loss: 0.9755 - val_accuracy: 0.7937
Epoch 15/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0666 - accuracy: 0.9766 - val_loss: 0.5923 - val_accuracy: 0.8542
Epoch 16/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0584 - accuracy: 0.9793 - val_loss: 0.5180 - val_accuracy: 0.8615
Epoch 17/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0438 - accuracy: 0.9850 - val_loss: 0.5608 - val_accuracy: 0.8698
Epoch 18/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0438 - accuracy: 0.9848 - val_loss: 0.5872 - val_accuracy: 0.8781
Epoch 19/20
233/233 [==============================] - 11s 45ms/step - loss: 0.0361 - accuracy: 0.9869 - val_loss: 0.5898 - val_accuracy: 0.8677
Epoch 20/20
233/233 [==============================] - 11s 46ms/step - loss: 0.0301 - accuracy: 0.9891 - val_loss: 0.6161 - val_accuracy: 0.8708

Transfer Learning (VGG 16)

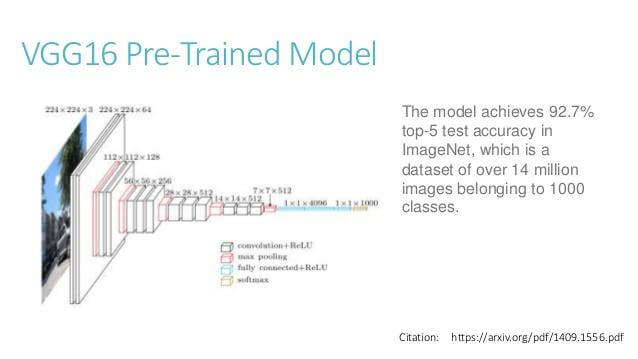

VGG-16은 ImageNet 데이터베이스의 1백만 개가 넘는 영상에 대해 훈련된 컨벌루션 신경망입니다. 이 네트워크에는 16개의 계층이 있으며, 영상을 키보드, 마우스, 연필, 각종 동물 등 1,000가지 사물 범주로 분류할 수 있습니다. 그 결과 이 네트워크는 다양한 영상을 대표하는 다양한 특징을 학습했습니다.

VGG-16모델을 활용하여 Transfer Learning 을 진행합니다.

Image('https://s3.ap-south-1.amazonaws.com/techleer/309.jpg')

transfer_model = VGG16(weights='imagenet', include_top=False, input_shape=(300, 300, 3))
transfer_model.trainable=False
model_tr = Sequential([
    transfer_model,
    Flatten(),
    Dense(64, activation='relu'),
    Dense(1, 'sigmoid')
])
model_tr.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
transfer_history = model_tr.fit(train_data,
                             validation_data=(valid_data),
                             steps_per_epoch=steps_per_epoch,
                             validation_steps=validation_steps,
                             epochs=20,
                            )
Train for 233 steps, validate for 15 steps
Epoch 1/20
233/233 [==============================] - 41s 178ms/step - loss: 0.3201 - accuracy: 0.8859 - val_loss: 0.1462 - val_accuracy: 0.9427
Epoch 2/20
233/233 [==============================] - 40s 173ms/step - loss: 0.1331 - accuracy: 0.9484 - val_loss: 0.1656 - val_accuracy: 0.9375
Epoch 3/20
233/233 [==============================] - 39s 166ms/step - loss: 0.1059 - accuracy: 0.9599 - val_loss: 0.1468 - val_accuracy: 0.9375
Epoch 4/20
233/233 [==============================] - 39s 167ms/step - loss: 0.1154 - accuracy: 0.9526 - val_loss: 0.1532 - val_accuracy: 0.9417
Epoch 5/20
233/233 [==============================] - 39s 167ms/step - loss: 0.1043 - accuracy: 0.9591 - val_loss: 0.2137 - val_accuracy: 0.9187
Epoch 6/20
233/233 [==============================] - 39s 167ms/step - loss: 0.1125 - accuracy: 0.9555 - val_loss: 0.1356 - val_accuracy: 0.9490
Epoch 7/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0930 - accuracy: 0.9634 - val_loss: 0.1440 - val_accuracy: 0.9500
Epoch 8/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0609 - accuracy: 0.9748 - val_loss: 0.1494 - val_accuracy: 0.9521
Epoch 9/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0413 - accuracy: 0.9852 - val_loss: 0.1807 - val_accuracy: 0.9365
Epoch 10/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0570 - accuracy: 0.9763 - val_loss: 0.1680 - val_accuracy: 0.9438
Epoch 11/20
233/233 [==============================] - 39s 167ms/step - loss: 0.0597 - accuracy: 0.9755 - val_loss: 0.1600 - val_accuracy: 0.9469
Epoch 12/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0601 - accuracy: 0.9738 - val_loss: 0.1433 - val_accuracy: 0.9469
Epoch 13/20
233/233 [==============================] - 39s 167ms/step - loss: 0.0463 - accuracy: 0.9793 - val_loss: 0.1895 - val_accuracy: 0.9354
Epoch 14/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0495 - accuracy: 0.9811 - val_loss: 0.4517 - val_accuracy: 0.8927
Epoch 15/20
233/233 [==============================] - 39s 167ms/step - loss: 0.0428 - accuracy: 0.9832 - val_loss: 0.1853 - val_accuracy: 0.9427
Epoch 16/20
233/233 [==============================] - 39s 167ms/step - loss: 0.0458 - accuracy: 0.9809 - val_loss: 0.2050 - val_accuracy: 0.9396
Epoch 17/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0278 - accuracy: 0.9905 - val_loss: 0.1698 - val_accuracy: 0.9438
Epoch 18/20
233/233 [==============================] - 39s 167ms/step - loss: 0.0566 - accuracy: 0.9755 - val_loss: 0.2024 - val_accuracy: 0.9417
Epoch 19/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0299 - accuracy: 0.9886 - val_loss: 0.1769 - val_accuracy: 0.9479
Epoch 20/20
233/233 [==============================] - 39s 166ms/step - loss: 0.0154 - accuracy: 0.9950 - val_loss: 0.1760 - val_accuracy: 0.9490

성능 Visualization

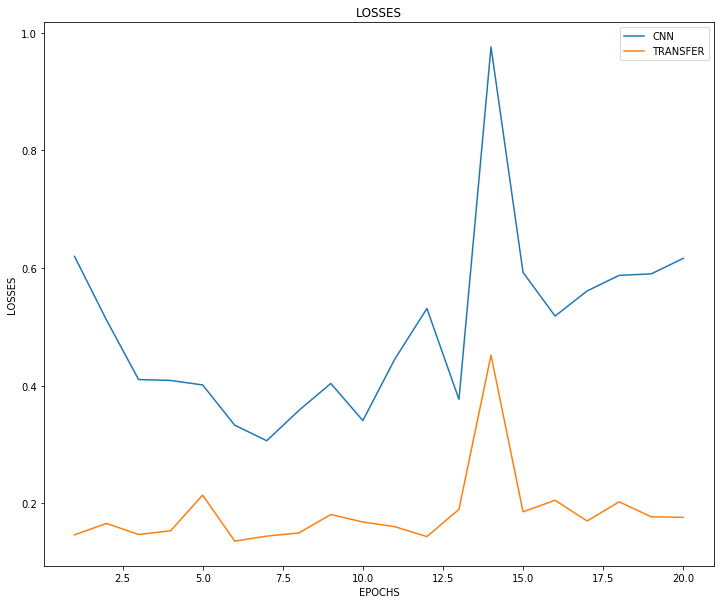

Losses 와 Accuracy를 보면, Transfer Learning 모델이 훨씬 초기 수렴이 빠를 뿐더러, 최종 성능도 accuracy 기준 약 10% 가량 우수하다는 것을 확인할 수 있습니다.

plt.figure(figsize=(12, 10))
plt.plot(np.arange(1, EPOCHS+1), cnn_history.history['val_loss'], label='CNN')
plt.plot(np.arange(1, EPOCHS+1), transfer_history.history['val_loss'], label='TRANSFER')
plt.xlabel('EPOCHS')
plt.ylabel('LOSSES')
plt.title('LOSSES')
plt.legend()
plt.show()

plt.figure(figsize=(12, 10))
plt.plot(np.arange(1, EPOCHS+1), cnn_history.history['val_accuracy'], label='CNN')
plt.plot(np.arange(1, EPOCHS+1), transfer_history.history['val_accuracy'], label='TRANSFER')
plt.xlabel('EPOCHS')
plt.ylabel('LOSSES')
plt.title('LOSSES')
plt.legend()
plt.show()
