Layer (type) Output Shape Param # Connected to

Reference: sujaybabruwad’s GitHub

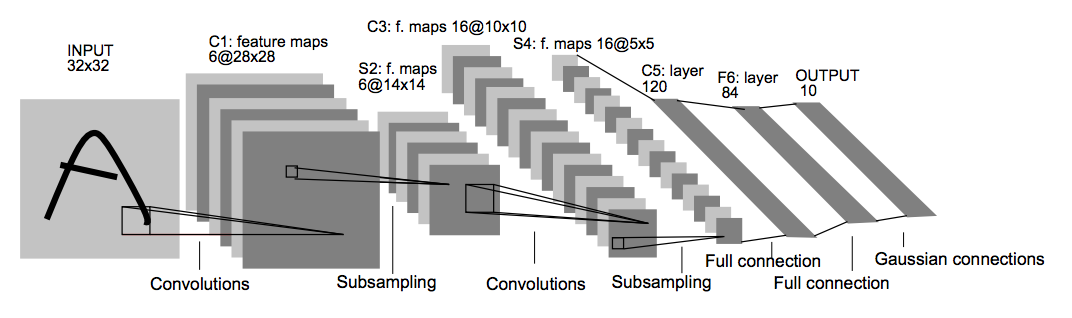

from IPython.display import Image

Image('https://github.com/sujaybabruwad/LeNet-in-Tensorflow/raw/master/lenet.png')

Structure

Input Image is 28x28x1 and converted to 32x32x1 as per LeNet requirements.
Convolution layer 1: The output shape should be 28x28x6.
Activation 1: Your choice of activation function.
Pooling layer 1: The output shape should be 14x14x6.
Convolution layer 2: The output shape should be 10x10x16.
Activation 2: Your choice of activation function.
Pooling layer 2: The output shape should be 5x5x16.
Flatten layer: Flatten the output shape of the final pooling layer such that it’s 1D instead of 3D.
Fully connected layer 1: This should have 120 outputs.
Activation 3: Your choice of activation function.
Fully connected layer 2: This should have 10 outputs.
Return the result of the 2nd fully connected layer from the LeNet function

import tensorflow as tf
import tensorflow_datasets as tfds

dataset_name = 'mnist'

(train, test), metadata = tfds.load(dataset_name, split=['train[:80%]', 'train[80%:]'], as_supervised=True, with_info=True)

metadata.features['label'].num_classes

def preprocessing(image, label):
    image = tf.reshape(image, (28, 28))
    image = tf.pad(image, tf.constant([[2, 2], [2, 2]]))
    image = tf.expand_dims(image, -1)
    return image / 255, label

train_data = train.map(preprocessing).batch(32).shuffle(1000)
test_data = test.map(preprocessing).batch(32).shuffle(1000)

class LeNet5(tf.keras.models.Model):
    def __init__(self, num_classes, **kwargs):
        super(LeNet5, self).__init__(num_classes, **kwargs)
        self.conv2d_1 = tf.keras.layers.Conv2D(filters=6, kernel_size=(5, 5), strides=(1, 1), activation='tanh', padding='valid')
        self.avg_pool = tf.keras.layers.AveragePooling2D(pool_size=(2, 2), strides=(2, 2), padding='valid')
        self.conv2d_2 = tf.keras.layers.Conv2D(filters=16, kernel_size=(5, 5), strides=(1, 1), activation='tanh', padding='valid')
        self.flatten = tf.keras.layers.Flatten()
        self.dense_1 = tf.keras.layers.Dense(120, activation='tanh')
        self.dense_2 = tf.keras.layers.Dense(84, activation='tanh')
        self.output_ = tf.keras.layers.Dense(num_classes, activation='softmax')

    def summary(self):
        x = tf.keras.layers.Input(shape=(32, 32, 1))
        model = tf.keras.models.Model(inputs=[x], outputs=self.call(x))
        return model.summary()

    def call(self, x):
        x = self.conv2d_1(x)
        x = self.avg_pool(x)
        x = self.conv2d_2(x)
        x = self.avg_pool(x)
        x = self.flatten(x)
        x = self.dense_1(x)
        x = self.dense_2(x)
        x = self.output_(x)
        return x

model = LeNet5(10)

model.summary()

Model: "model_3"
__________________________________________________________________________________________________
input_6 (InputLayer)            [(None, 32, 32, 1)]  0
__________________________________________________________________________________________________
conv2d_18 (Conv2D)              (None, 28, 28, 6)    156         input_6[0][0]
__________________________________________________________________________________________________
average_pooling2d_9 (AveragePoo multiple             0           conv2d_18[0][0]
                                                                 conv2d_19[0][0]
__________________________________________________________________________________________________
conv2d_19 (Conv2D)              (None, 10, 10, 16)   2416        average_pooling2d_9[0][0]
__________________________________________________________________________________________________
flatten_9 (Flatten)             (None, 400)          0           average_pooling2d_9[1][0]
__________________________________________________________________________________________________
dense_27 (Dense)                (None, 120)          48120       flatten_9[0][0]
__________________________________________________________________________________________________
dense_28 (Dense)                (None, 84)           10164       dense_27[0][0]
__________________________________________________________________________________________________
dense_29 (Dense)                (None, 10)           850         dense_28[0][0]
==================================================================================================
Total params: 61,706
Trainable params: 61,706
Non-trainable params: 0
__________________________________________________________________________________________________

model.compile(optimizer='adam', loss='sparse_categorical_crossentropy', metrics=['acc'])

model.fit(train_data, validation_data=(test_data), epochs=10)

Epoch 1/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.2500 - acc: 0.9250 - val_loss: 0.1253 - val_acc: 0.9624
Epoch 2/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0949 - acc: 0.9703 - val_loss: 0.1148 - val_acc: 0.9644
Epoch 3/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0657 - acc: 0.9797 - val_loss: 0.0713 - val_acc: 0.9789
Epoch 4/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0502 - acc: 0.9846 - val_loss: 0.0671 - val_acc: 0.9803
Epoch 5/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0395 - acc: 0.9873 - val_loss: 0.0773 - val_acc: 0.9767
Epoch 6/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0333 - acc: 0.9891 - val_loss: 0.0682 - val_acc: 0.9794
Epoch 7/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0261 - acc: 0.9914 - val_loss: 0.0587 - val_acc: 0.9833
Epoch 8/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0211 - acc: 0.9929 - val_loss: 0.0763 - val_acc: 0.9781
Epoch 9/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0200 - acc: 0.9934 - val_loss: 0.0718 - val_acc: 0.9801
Epoch 10/10
1500/1500 [==============================] - 5s 3ms/step - loss: 0.0163 - acc: 0.9945 - val_loss: 0.0577 - val_acc: 0.9835

<tensorflow.python.keras.callbacks.History at 0x7fe2de7914a8>
