from tensorflow.keras.layers import Conv2D, Conv2DTranspose, Dense, Flatten, Dropout, BatchNormalization, Reshape, LeakyReLU
from tensorflow.keras.models import Model, Sequential
from tensorflow.keras.callbacks import ModelCheckpoint
import tensorflow as tfImport
MNIST 데이터를 불러옵니다.
mnist = tf.keras.datasets.mnist(x_train, y_train), (x_valid, y_valid) = mnist.load_data()x_train.shape, y_train.shape((60000, 28, 28), (60000,))28 X 28 X 1로 shape를 변경합니다.
x_train = x_train.reshape(-1, 28, 28, 1)x_train을 Normalization 해줍니다. -1 ~ 1 사이의 값을 가집니다.
(이는 나중에 마지막 출력층 activation에서 sigmoid말고 tanh를 사용하기 위함입니다.
x_train = x_train / 127.5 - 1x_train.min(), x_train.max()(-1.0, 1.0)Encoder를 정의합니다.
encoder_input = Input(shape=(28, 28, 1))
# 28 X 28
x = Conv2D(32, 3, padding='same')(encoder_input)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 28 X 28 -> 14 X 14
x = Conv2D(64, 3, strides=2, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 14 X 14 -> 7 X 7
x = Conv2D(64, 3, strides=2, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 17 X 7
x = Conv2D(64, 3, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
x = Flatten()(x)
# 2D 좌표로 표기하기 위하여 2를 출력값으로 지정합니다.
encoder_output = Dense(2)(x)Encoder 모델 정의
encoder = Model(encoder_input, encoder_output)encoder.summary()Model: "model_2"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_5 (InputLayer) [(None, 28, 28, 1)] 0
_________________________________________________________________
conv2d_36 (Conv2D) (None, 28, 28, 32) 320
_________________________________________________________________
batch_normalization_44 (Batc (None, 28, 28, 32) 128
_________________________________________________________________
leaky_re_lu_45 (LeakyReLU) (None, 28, 28, 32) 0
_________________________________________________________________
conv2d_37 (Conv2D) (None, 14, 14, 64) 18496
_________________________________________________________________
batch_normalization_45 (Batc (None, 14, 14, 64) 256
_________________________________________________________________
leaky_re_lu_46 (LeakyReLU) (None, 14, 14, 64) 0
_________________________________________________________________
conv2d_38 (Conv2D) (None, 7, 7, 64) 36928
_________________________________________________________________
batch_normalization_46 (Batc (None, 7, 7, 64) 256
_________________________________________________________________
leaky_re_lu_47 (LeakyReLU) (None, 7, 7, 64) 0
_________________________________________________________________
conv2d_39 (Conv2D) (None, 7, 7, 64) 36928
_________________________________________________________________
batch_normalization_47 (Batc (None, 7, 7, 64) 256
_________________________________________________________________
leaky_re_lu_48 (LeakyReLU) (None, 7, 7, 64) 0
_________________________________________________________________
flatten_9 (Flatten) (None, 3136) 0
_________________________________________________________________
dense_15 (Dense) (None, 2) 6274
=================================================================
Total params: 99,842
Trainable params: 99,394
Non-trainable params: 448
_________________________________________________________________Decoder
# Input으로는 2D 좌표가 들어갑니다.
decoder_input = Input(shape=(2, ))
# 2D 좌표를 7*7*64 개의 neuron 출력 값을 가지도록 변경합니다.
x = Dense(7*7*64)(decoder_input)
x = Reshape( (7, 7, 64))(x)
# 7 X 7 -> 7 X 7
x = Conv2DTranspose(64, 3, strides=1, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 7 X 7 -> 14 X 14
x = Conv2DTranspose(64, 3, strides=2, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 14 X 14 -> 28 X 28
x = Conv2DTranspose(64, 3, strides=2, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 28 X 28 -> 28 X 28
x = Conv2DTranspose(32, 3, strides=1, padding='same')(x)
x = BatchNormalization()(x)
x = LeakyReLU()(x)
# 최종 output
decoder_output = Conv2DTranspose(1, 3, strides=1, padding='same', activation='tanh')(x)Decoder 모델 정의
decoder = Model(decoder_input, decoder_output)decoder.summary()Model: "model_3"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_7 (InputLayer) [(None, 2)] 0
_________________________________________________________________
dense_17 (Dense) (None, 3136) 9408
_________________________________________________________________
reshape_4 (Reshape) (None, 7, 7, 64) 0
_________________________________________________________________
conv2d_transpose_19 (Conv2DT (None, 7, 7, 64) 36928
_________________________________________________________________
batch_normalization_52 (Batc (None, 7, 7, 64) 256
_________________________________________________________________
leaky_re_lu_53 (LeakyReLU) (None, 7, 7, 64) 0
_________________________________________________________________
conv2d_transpose_20 (Conv2DT (None, 14, 14, 64) 36928
_________________________________________________________________
batch_normalization_53 (Batc (None, 14, 14, 64) 256
_________________________________________________________________
leaky_re_lu_54 (LeakyReLU) (None, 14, 14, 64) 0
_________________________________________________________________
conv2d_transpose_21 (Conv2DT (None, 28, 28, 64) 36928
_________________________________________________________________
batch_normalization_54 (Batc (None, 28, 28, 64) 256
_________________________________________________________________
leaky_re_lu_55 (LeakyReLU) (None, 28, 28, 64) 0
_________________________________________________________________
conv2d_transpose_22 (Conv2DT (None, 28, 28, 32) 18464
_________________________________________________________________
batch_normalization_55 (Batc (None, 28, 28, 32) 128
_________________________________________________________________
leaky_re_lu_56 (LeakyReLU) (None, 28, 28, 32) 0
_________________________________________________________________
conv2d_transpose_23 (Conv2DT (None, 28, 28, 1) 289
=================================================================
Total params: 139,841
Trainable params: 139,393
Non-trainable params: 448
_________________________________________________________________Hyperparameter 정의
LEARNING_RATE = 0.0005
BATCH_SIZE = 32Encoder와 Decoder를 연결합니다.
encoder_in = Input(shape=(28, 28, 1))
x = encoder(encoder_in)
decoder_out = decoder(x)Auto Encoder 모델을 최종 정의합니다.
auto_encoder = Model(encoder_in, decoder_out)Auto Encoder 모델을 compile 합니다.
optimizer는 Adam, loss는 MSE 에러를 가지도록 합니다.
auto_encoder.compile(optimizer=tf.keras.optimizers.Adam(LEARNING_RATE), loss=tf.keras.losses.MeanSquaredError())체크포인트를 정의합니다.
checkpoint_path = 'tmp/01-basic-auto-encoder-MNIST.ckpt'
checkpoint = ModelCheckpoint(checkpoint_path,
save_best_only=True,
save_weights_only=True,
monitor='loss',
verbose=1)학습을 시작합니다.
auto_encoder.fit(x_train, x_train,
batch_size=BATCH_SIZE,
epochs=100,
callbacks=[checkpoint],
)auto_encoder.load_weights(checkpoint_path)<tensorflow.python.training.tracking.util.CheckpointLoadStatus at 0x7f2659c3ec88>시각화
import matplotlib.pyplot as plt
%matplotlib inline# MNIST 이미지에 대하여 x, y 좌표로 뽑아냅니다.

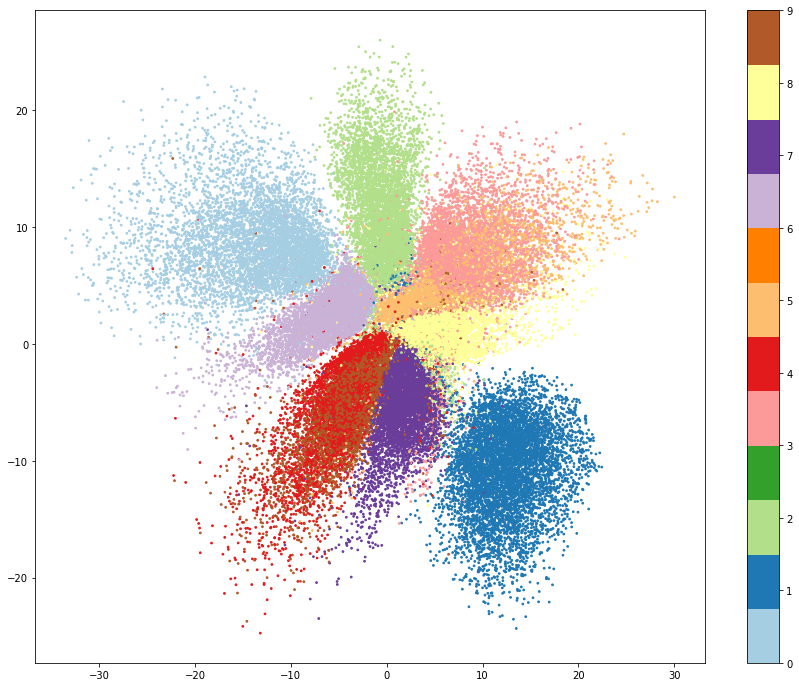

xy = encoder.predict(x_train)xy.shape, y_train.shape((60000, 2), (60000,))인코더의 X, Y 좌표 값을 시각화 해보겠습니다.
plt.figure(figsize=(15, 12))
plt.scatter(x=xy[:, 0], y=xy[:, 1], c=y_train, cmap=plt.get_cmap('Paired'), s=3)
plt.colorbar()
plt.show()

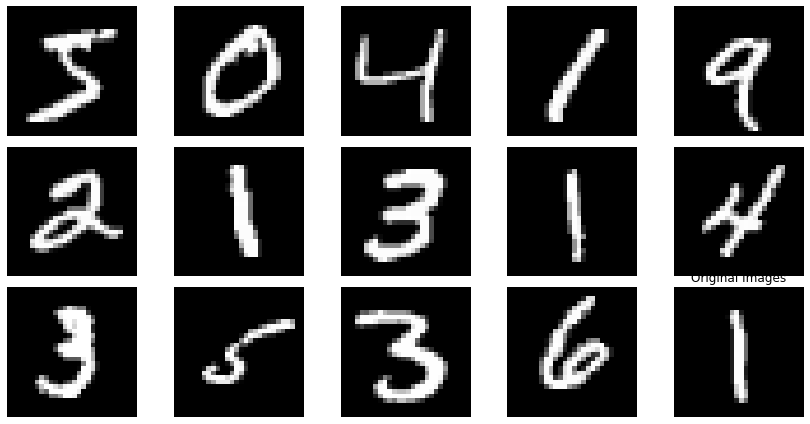

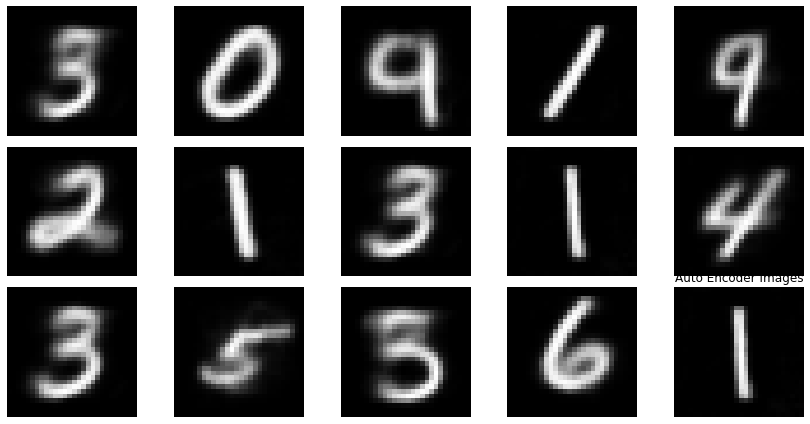

Auto Encoder를 통한 이미지 재생성 성능 비교 시각화
decoded_images = auto_encoder.predict(x_train)fig, axes = plt.subplots(3, 5)
fig.set_size_inches(12, 6)
for i in range(15):
axes[i//5, i%5].imshow(x_train[i].reshape(28, 28), cmap='gray')
axes[i//5, i%5].axis('off')
plt.tight_layout()
plt.title('Original Images')
plt.show()
fig, axes = plt.subplots(3, 5)
fig.set_size_inches(12, 6)
for i in range(15):
axes[i//5, i%5].imshow(decoded_images[i].reshape(28, 28), cmap='gray')
axes[i//5, i%5].axis('off')
plt.tight_layout()
plt.title('Auto Encoder Images')
plt.show()
정리
- 첫번째 디코딩 된 이미지를 보면, 원본 이미지는 5이나, decoder 이미지는 3처럼 보인다. (3번째도 원래 4인데 9처럼 디코딩 되었다)
- 전체적으로 이미지 재구성에 대한 성능은 뛰어난 편이다.
- Decoder만 따로 떼내어, 임의의 X, Y 좌표를 넣어 주는 것으로 이미지를 새로 만들어 낼 수도 있다.
